Aluminum Extrusion Process Flow

The aluminum extrusion process flow is the backbone of modern aluminum profile manufacturing. From architectural window frames to industrial structural components, extrusion allows manufacturers to produce precise, lightweight, and high-strength aluminum shapes at scale. Yet many buyers only see the finished profile and have little visibility into what actually happens inside the factory. Understanding the full extrusion workflow helps you evaluate supplier capability, predict product quality, and avoid costly project risks.

In simple terms, aluminum extrusion is a controlled forming process in which heated aluminum billets are forced through a precision die to create continuous profiles with a fixed cross-section. While the concept sounds straightforward, achieving stable dimensions, smooth surfaces, and consistent mechanical properties requires tight control at every stage. Below is a complete and practical breakdown of the aluminum extrusion process flow used by professional manufacturers.

Billet Selection and Preparation

The process begins with selecting the appropriate aluminum alloy billet, typically 6063 for architectural aluminum window profiles or 6061 for higher structural strength applications. Billets arrive as solid cylindrical logs and must be inspected for chemical composition, surface defects, and internal integrity before production begins. The billets are then cut into specific lengths based on press capacity and target profile size.

This early step is more important than many buyers realize. Poor billet quality can lead to surface streaks, inconsistent hardness, or even extrusion cracking later in the process. Reliable manufacturers maintain strict incoming material controls and traceability to ensure stable downstream results.

Controlled Billet Heating

Once prepared, the aluminum billet is heated in a specialized furnace, typically to a range of 400–500°C (752–932°F). The goal is to soften the aluminum enough to allow plastic deformation without reaching the melting point. Temperature uniformity is critical here. If the billet is overheated, the extruded profile may suffer from dimensional instability or surface tearing; if underheated, excessive press force is required, increasing the risk of die wear and surface defects.

Advanced extrusion plants use multi-zone heating furnaces and infrared monitoring to ensure the billet core and surface reach a consistent temperature profile. This is one of the first places where high-end factories distinguish themselves from low-cost suppliers.

Die Preparation and Preheating

While the billet is heating, the extrusion die is cleaned, inspected, and preheated. The die is a precision-machined steel tool that ultimately determines the cross-section of the aluminum profile. Even microscopic contamination or temperature mismatch at this stage can negatively affect surface finish.

Preheating the die serves two purposes: it reduces thermal shock when the hot billet makes contact, and it promotes smoother metal flow during extrusion. Experienced manufacturers also verify die alignment and bearing condition before each production run to maintain tight tolerances.

High-Pressure Extrusion Forming

This is the core step in the aluminum extrusion process flow. The heated billet is transferred into the extrusion press container, and a hydraulic ram applies enormous pressure—often between 1,000 and 15,000 tons—to force the softened aluminum through the die opening. As the material flows through the die, it emerges as a continuous profile that mirrors the die geometry.

Extrusion speed, pressure stability, and temperature control must be carefully balanced. If the press runs too fast, surface ripples or tearing may occur; too slow, and productivity drops while metal flow becomes uneven. Skilled operators continuously monitor exit temperature and profile surface condition during this stage to ensure consistent quality.

Profile Cooling and Quenching

Immediately after exiting the die, the aluminum profile is still hot and relatively soft. It must be rapidly cooled—typically using air fans or water quenching—to lock in the desired metallurgical properties. Proper quenching improves final strength and helps prevent grain growth that could weaken the material.

Cooling must be uniform along the entire profile length. Uneven cooling can cause bowing, twisting, or internal stress buildup. High-quality extrusion lines use controlled cooling tables with synchronized airflow to maintain profile straightness.

Stretching and Straightening

After cooling, the long extruded profiles are transferred to a stretching machine. Here, each profile is gripped at both ends and pulled under controlled tension. This process removes residual internal stress from extrusion and corrects minor bending or twisting.

For aluminum window frame profiles and curtain wall components, straightness tolerance is critical because even small deviations can create installation problems later. Professional factories carefully calculate stretch ratios to balance stress relief with dimensional stability.

Precision Cutting to Length

Once straightened, the continuous extrusion is cut into customer-specified lengths, commonly 5.8 m, 6.0 m, or custom project sizes. Modern plants use automated flying saws to ensure square, burr-free cuts.

Accurate cutting is more than a finishing step—it directly affects downstream fabrication efficiency. Poor cut quality can increase waste and labor costs for window and door manufacturers.

Artificial Aging (Heat Treatment)

To achieve full mechanical strength, the aluminum profiles undergo artificial aging in a temperature-controlled oven, typically to reach T5 or T6 temper conditions. During aging, the alloy’s internal structure stabilizes and hardness increases significantly.

For commercial aluminum window systems and structural profiles, proper aging ensures long-term performance under wind load, thermal expansion, and mechanical stress. Skipping or shortening this step is a common shortcut among low-quality suppliers.

Surface Finishing

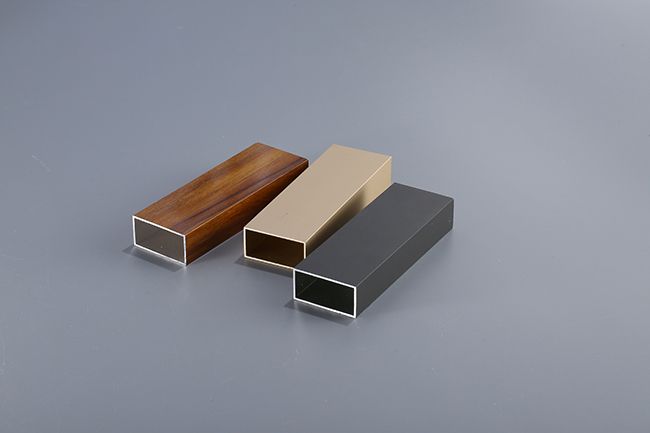

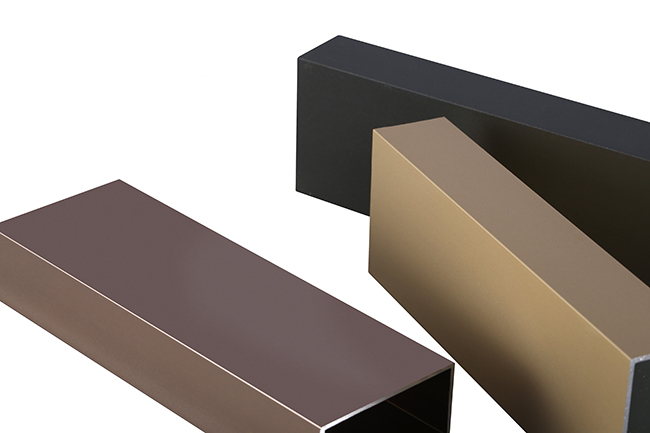

Depending on project requirements, the profiles may undergo anodizing, powder coating, electrophoresis, or wood-grain transfer. Surface treatment not only enhances appearance but also dramatically improves corrosion resistance and weather durability.

Architectural buyers in the United States and Canada often require certified coating thickness and color consistency. Reputable manufacturers perform pre-treatment cleaning, chemical conversion coating, and controlled curing to meet these standards.

Final Quality Inspection and Packaging

Before shipment, the finished aluminum profiles undergo comprehensive quality checks, including dimensional measurement, surface inspection, coating thickness verification, and mechanical property testing. Only after passing inspection are the profiles carefully wrapped and packaged for export to prevent scratches and deformation during transportation.

Conclusion

The aluminum extrusion process flow is a tightly controlled sequence that transforms raw aluminum billets into high-precision engineered profiles. While the basic concept is simple, true product quality depends on disciplined temperature control, die management, press operation, and post-treatment expertise at every stage. For buyers sourcing aluminum window profiles, door frames, or custom extrusion solutions, working with a manufacturer that demonstrates transparency and process control is essential to ensuring consistent performance and long-term reliability.
